GAS ALARM SYSTEM with Control and Monitoring Solution for Glass Plant Application

GAS ALARM SYSTEM with Control and Monitoring Solution for Glass Plant Application

industry

ALVI Automation/Gas Alarm Systems designed engineered PLC & HMI based gas detection, monitoring  and control solution which include:

The Gas Alarm system components shall have similar features as specified below:
1. Gas controller cum display unit:
It shall be digital programmable logic controller (PLC) with CPU based, based on decentralized monitoring architecture with: 5 x slave controller (without display, with local digital output for alarm / Fan / Valve control etc) modules over RS485 serial interface TCP/IP or ModBus Communication, 1x Master Controller (with 10 inch colored touch-screen HMI LCD Display, with digital output for alarm / fan / valve control)
Display would show: gas concentration at each sensor, sensor status, sensor location, alarm status, system error, fault location etc Integrate able with BMS/ SCADA, Fire alarm system Configurable alarm threshold via touchscreen display password protected Simple English menu for configuration, with aux. power supply to sensor transmitters, wall mountable IP65 metallic / ABS fire retardant enclosure (non explosion proof), fire retardant panel wiring, 230VAC 1-phase power supply, with bench-top programming.

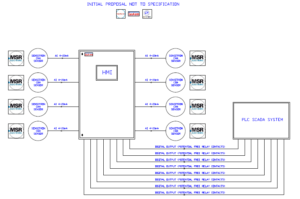

IMG_20161125_161442825panel 1

2. Hydrogen gas sensor/detector transmitter:
It shall be online, continuous monitoring of hydrogen in ambient air, measuring range: 0-2000 ppm H2, Electro-chemical sensor cell technology, RS485 serial interface with MobBus RTU communication, 4-20mA analog output linear proportional, anti-static epoxy coated metallic enclosure, SS 316 sensor cell enclosure with flash back arrestor and sintered filter, without on-board display & relays, 24V DC powered, response time < 15 sec, IP55 ingress protection. CESI 03 ATEX 339, ATEX II 3G EEx nAd nC d IIC T6 for Zone 2 explosion proof area; CESI 02 ATEX 084 performance certified SIL 2 HW approved EMC EN50270, EN 61000, ATEX, IECEX compliant

MSR PX2 Series Sensor Transmiter
3. Oxygen gas sensor/detector transmitter:
It shall be online, continuous monitoring of oxygen gas in ambient air, measuring range: 0-25% v/v O2, Electro-chemical sensor cell technology, RS485 serial interface with MobBus RTU communication, 4-20mA analog output linear proportional, anti-static epoxy coated metallic enclosure, SS 316 sensor cell enclosure with flash back arrestor and sintered filter, without on-board display & relays, 24V DC powered, response time < 15 sec, IP55 ingress protection CESI 03 ATEX 339, ATEX II 3G EEx nAd nC d IIC T6 for Zone 2 explosion proof area; CESI 02 ATEX 084 performance certified SIL 2 HW approved EMC EN50270, EN 61000, ATEX, IECEX compliant

H2 ARB2 sesnor
4. C2H2 (Acetylene) gas sensor / detector transmitter:
It shall be online, continuous monitoring of acetylene in ambient air (in chloride containing background gases), measuring range: 0-100% LEL C2H2, reliable infra-red sensor cell with poisoing and etching immunity, self-compensating optics, pressure and temperature measurement, isolated RS485 serial interface with MobBus RTU communication, 4-20mA analog output linear proportional, anti-static epoxy coated aluminum enclosure, SS 316 sensor cell enclosure, with back-lit LCD display, 24V DC powered, response time < 10 sec, IP65 ingress protection CSA/NRTL Class, Div 1, ATEX, IECEX, Group A,B,C,D T5 IECEx Ex d IIB + H2 T5 Gb, for Zone 1, 2

hydrogen-sensor-500x500
5. Silicon Chloride (SiCL4) (HCL) gas sensor/detector transmitter:
It shall be online, continuous monitoring of Silicon Chloride in ambient air (in chloride containing background gases), measuring range: 0-20 ppm SiCl4, reliable electro-chemical (galvanic) sensor cell with poisoing and etching immunity, self-compensating optics, pressure and temperature measurement, isolated RS485 serial interface with MobBus RTU communication, 4-20mA analog output linear proportional, anti-static epoxy coated aluminum enclosure, SS 316 sensor cell enclosure, with back-lit LCD display, 24V DC powered, response time < 15 sec, IP65 ingress protection AYEX, IECEX, SIL2,  CSA/NRTL Class, Div 1, Group A,B,C,D T5
IECEx Ex d IIB + H2 T5 Gb, for Zone 1, 2

MSR_PolyXeta_mit_Display_RAL_7035_Alarm
6. GeCL4 gas sensor / detector transmitter:
It shall be online, continuous monitoring of GeCl4 gas in ambient air (in chloride containing background gases), measuring range: 0-20 ppm GeCl4 (calibrated against HCl), Electrochemical sensor cell technology, RS485 serial interface with MobBus RTU communication, 4-20mA analog output linear proportional, anti-static epoxy coated metallic enclosure, corrosion resistant SS 316 sensor cell enclosure with flash back arrestor and sintered filter, without on-board display & relays, 24V DC powered, response time < 15 sec, IP55 ingress protection CESI 03 ATEX 339, ATEX II 3G EEx nAd nC d IIC T6 for Zone 2 explosion proof area; CESI 02 ATEX 084 performance certified SIL 2 HW approved, ATEX, IECEX, SIL2,  EMC EN50270, EN 61000 complian

ADT MC2 sensor

7. CL2 gas sensor/detector transmitter:
It shall be online, continuous monitoring of Cl2 gas in ambient air, measuring range: 0-20 ppm Cl2, Electro-chemical sensor cell technology, RS485 serial interface with MobBus RTU communication, 4-20mA analog output linear proportional, anti-static epoxy coated metallic enclosure, corrosion resistant SS 316 sensor cell enclosure with flash back arrestor and sintered filter, without on-board display & relays, 24V DC powered, response time < 15 sec, IP55 ingress protection CESI 03 ATEX 339, ATEX II 3G EEx nAd nC d IIC T6 for Zone 2 explosion proof area; CESI 02 ATEX 084 performance certified SIL 2 HW approved, ATEX, IECEX, SIL2 EMC EN50270, EN 61000 compliant

CO Sensor Transmitter
8. CH4 (Methane) gas sensor / detector transmitter:
It shall be online, continuous monitoring of CH4 gas in ambient air (in chloride containing background gases), measuring range: 0-100% LEL ppm CH4, reliable infra-red sensor with poisoning and etching protection, RS485 serial interface with MobBus RTU communication, 4-20mA analog output linear proportional, anti-static epoxy coated metallic enclosure, corrosion resistant SS 316 sensor cell enclosure with sintered filter, without on-board display & relays, 24V DC powered, response time < 15 sec, IP55 ingress protection CESI 03 ATEX 339, ATEX II 3G EEx nAd nC d IIC T6 for Zone 2 explosion proof area; CESI 02 ATEX 084 performance certified SIL 2 HW approved, ATEX, IECEX,  EMC EN50270, EN 61000 compliant

For more details please contact us or drop a mail to info@alviautomation.com we would be happy to serve you:)
