ALL FISCHER MESS- UND REGELTECHNIK PRODUCTS

ALVI AUTOMATION (India) Pvt Ltd offers Differential Pressure-measuring, Pressure, Level, Gauge and monitoring field instruments for use in the wide area of industries including process industry, building, MEP, HVAC, oil & Gas, chemical, food processing, nuclear, petrochemical, hydro, power plants etc.

FiSCHER PRESSURE Gauge,Transmitter and switch:

Product Discription  Model no
DIAL PRESSURE GAUGE / BOURDON TUBE / FOR GAS / STAINLESS STEEL DA55
DIAL PRESSURE GAUGE / BOURDON TUBE / PROCESS / FOR GAS MA12
DIAL PRESSURE GAUGE / BOURDON TUBE / PROCESS / FOR GAS MA13
DIAL PRESSURE GAUGE / DIAPHRAGM / FOR GAS / CORROSION-RESISTANT MA15
DIGITAL PRESSURE GAUGE / DIFFERENTIAL / FOR GAS / PORTABLE MA25
DIGITAL PRESSURE GAUGE / FOR GAS / PORTABLE MA30
ANALOG PRESSURE GAUGE / BOURDON TUBE / PROCESS / FOR GAS MA32
DIAPHRAGM SEAL WITH THREADED CONNECTION / FOR PRESSURE GAUGES / FOR THE FOOD INDUSTRY MD03
DIAPHRAGM SEAL WITH FLANGE CONNECTION / FOR PRESSURE GAUGES MD26, 36
DIAPHRAGM SEAL WITH FLANGE CONNECTION / FOR PRESSURE GAUGES MD28-38
DIGITAL PRESSURE GAUGE / ELECTRONIC / PROCESS / FOR GAS ME01
RELATIVE PRESSURE TRANSMITTER / VACUUM / THIN-FILM / ANALOG ME11
RELATIVE PRESSURE TRANSMITTER / ABSOLUTE / CERAMIC / THIN-FILM ME12
RELATIVE PRESSURE TRANSMITTER / CERAMIC / THIN-FILM / WITH ANALOG OUTPUT ME49
RELATIVE PRESSURE TRANSMITTER / PIEZORESISTIVE / ANALOG / PROCESS ME50
LIQUID LEVEL TRANSMITTER / ANALOG / EXPLOSION-PROOF / FOR STORAGE TANKS ME56T
RELATIVE PRESSURE TRANSMITTER / CERAMIC / THIN-FILM / WITH ANALOG OUTPUT ME67
RELATIVE PRESSURE TRANSMITTER / MEMBRANE / ANALOG / PROCESS ME69
ABSOLUTE PRESSURE TRANSMITTER / SILICON / ANALOG / HART ME71
LIQUIDS AND GASE PRESSURE AND VACUUM SWITCH / FOR WATER MS10
LIQUIDS AND GASE PRESSURE AND VACUUM SWITCH / FOR WATER / DIAPHRAGM / EXPLOSION-PROOF MS11
MECHANICAL PRESSURE SWITCH / COMPACT / EXPLOSION-PROOF / WITH DIGITAL DISPLAY MS12

Pressure 1Pressure 2 Pressure 3 Pressure 4 Pressure 5

FISCHER DIFFERENTIAL PRESSURE Gauge, Transmitter/Flow and Switch:

Product Description  Model no
ANALOG PRESSURE GAUGE / DIFFERENTIAL PRESSURE / PROCESS / FOR GAS DA01
DIAL PRESSURE GAUGE / DIFFERENTIAL PRESSURE / PROCESS / FOR GAS DA03
DIAL PRESSURE GAUGE / DIFFERENTIAL PRESSURE / PROCESS / FOR GAS DA08
ANALOG PRESSURE GAUGE / DIFFERENTIAL PRESSURE / PROCESS / FOR GAS DA09
ANALOG PRESSURE GAUGE / DIFFERENTIAL PRESSURE / PROCESS / FOR GAS DA10
ANALOG PRESSURE GAUGE / DIFFERENTIAL PRESSURE / FOR GAS / FOR VACUUM DA12
ANALOG PRESSURE GAUGE / DIFFERENTIAL PRESSURE / PROCESS / FOR GAS DA30
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH DIGITAL OUTPUT / RUGGED DE03
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH DIGITAL OUTPUT DE13
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / FOR LIQUIDS AND GASES DE15
DIFFERENTIAL PRESSURE TRANSMITTER / VACUUM / ANALOG / SANITARY DE16
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG DE23
DIFFERENTIAL PRESSURE TRANSMITTER / PIEZORESISTIVE / WITH DIGITAL OUTPUT DE25
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / FOR LIQUIDS AND GASES DE28
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH DIGITAL OUTPUT / FOR LIQUIDS AND GASES DE38
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH DIGITAL OUTPUT / FOR LIQUIDS AND GASES DE38_LCD
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH DIGITAL OUTPUT / FOR LIQUIDS AND GASES DE39
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH DIGITAL OUTPUT / FOR LIQUIDS AND GASES
DE39_LCD

DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH ANALOG OUTPUT / FOR LIQUIDS AND GASES DE40
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH ANALOG OUTPUT / WITH DIGITAL OUTPUT DE44
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH ANALOG OUTPUT / WITH DIGITAL OUTPUT DE44_LCD
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / WITH DIGITAL OUTPUT DE45
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / WITH DIGITAL OUTPUT DE45_LCD
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / WITH DIGITAL OUTPUT DE46
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / WITH DIGITAL OUTPUT DE46_LCD
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / WITH DIGITAL OUTPUT DE49_0_LCD
DIFFERENTIAL PRESSURE TRANSMITTER / ANALOG / WITH DIGITAL OUTPUT / FOR LIQUIDS AND GASES DE49_A_LCD
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH ANALOG OUTPUT / FOR LIQUIDS AND GASES DE50
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / WITH DIGITAL OUTPUT / FOR LIQUIDS AND GASES DE58
DIFFERENTIAL PRESSURE TRANSMITTER / MEMBRANE / ANALOG / STAINLESS STEEL DE70
LIQUIDS AND GASE PRESSURE AND VACUUM SWITCH / DIFFERENTIAL / RUGGED DS11
GAS PRESSURE AND VACUUM SWITCH / DIFFERENTIAL / RUGGED DS13
DIFFERENTIAL PRESSURE SWITCH / INCREASED SAFETY DS21
GAS PRESSURE SWITCH / FOR LIQUIDS / DIFFERENTIAL DS31
GAS PRESSURE SWITCH / DIFFERENTIAL DS35
DIFFERENTIAL PRESSURE FLOW TRANSMITTER / GAS / FOR LIQUIDS FD38_LCD
GAS FLOW TRANSMITTER / FOR LIQUIDS FD39

dasdsdfsdfsdfsfCapture 2Capture 4 35Capture 6asddsaCapture 8

fischer HUMIDITY / TEMPERATURE tRANSMITTER, PROBE AND aNALOG TYPE:

Product Description  Model no
RELATIVE HUMIDITY TRANSMITTER / DUCT-MOUNT / WITH TEMPERATURE MEASUREMENT / WITH DIGITAL OUTPUT FT61
GAS THERMOMETER / ANALOG / INSERTION / DIAL TA
INFRARED THERMOMETER / DIGITAL / INSERTION / INDUSTRIAL TE01
PROBE HEAD-MOUNTED TEMPERATURE TRANSMITTER / RTD / PT100 / DIGITAL TE41
PROBE HEAD-MOUNTED TEMPERATURE TRANSMITTER / RTD / DIGITAL / PROCESS TE42
LIQUID THERMOMETER / GAS EXPANSION WITH CAPILLARY / ANALOG / FLANGE TK
TEMPERATURE SWITCH TS61
THERMOCOUPLE / FLANGE / SCREW-IN / FOR LIQUIDS TT30
THERMOCOUPLE / SCREW-IN / FOR LIQUIDS / FOR GAS TT31
THERMOCOUPLE / SCREW-IN / FOR LIQUIDS / FOR GAS TT32
THERMOCOUPLE / SCREW-IN / FOR LIQUIDS / FOR GAS TT35
THERMOCOUPLE / SCREW-IN / FOR LIQUIDS / FOR GAS TT36
RESISTANCE THERMOMETER / LIQUID / GAS / WITHOUT DISPLAY TW27
RESISTANCE THERMOMETER / LIQUID / GAS / WITHOUT DISPLAY TW31
RESISTANCE THERMOMETER / LIQUID / GAS / WITHOUT DISPLAY TW36
RESISTANCE THERMOMETER / LIQUID / GAS / WITHOUT DISPLAY TW40
RESISTANCE THERMOMETER / LIQUID / WITHOUT DISPLAY / SURFACE-MOUNT TW45
RESISTANCE THERMOMETER / LIQUID / GAS / WITHOUT DISPLAY TW50
RESISTANCE THERMOMETER / LIQUID / GAS / WITHOUT DISPLAY TW68
RESISTANCE THERMOMETER / GAS / WITHOUT DISPLAY / INDUSTRIAL TW70, TW73
RESISTANCE THERMOMETER / LIQUID / WITHOUT DISPLAY / SURFACE-MOUNT TW85
CABLE RESISTANCE THERMOMETER / GAS / WITHOUT DISPLAY / SURFACE-MOUNT TW89

cAP 1Capture 2Capture 3Capture 4Capture 5

fischer SIGNAL CONDITIONING:

Product Description  Model no
POSITION INDICATOR / DIGITAL / PANEL-MOUNT EA10
DIGITAL PRESSURE INDICATOR / DIFFERENTIAL / PROCESS EA14D
LIQUID LEVEL INDICATOR / ELECTRONIC / DIGITAL / FOR TANKS EA14F
DIGITAL PRESSURE INDICATOR / PROCESS EA14M
IN RAIL MOUNT TEMPERATURE TRANSMITTER / 2-WIRE / DIGITAL / 4-20 MA EU41

Cap 1

FISCHER LEVEL MEASURMENTATION FOR LIQUID:

Product Description  Model no
lED DISPLAY / ELECTRONIC / FOR TANK LEVEL MEASUREMENT DISPLAY / ELECTRONIC / FOR TANK LEVEL MEASUREMENT EA01 SERIES
LIQUID LEVEL INDICATOR / DIGITAL / FOR TANKS DE and DS series
CAPACITIVE LEVEL SENSOR / FOR LIQUIDS / ANALOG / 4-20 MA NC56

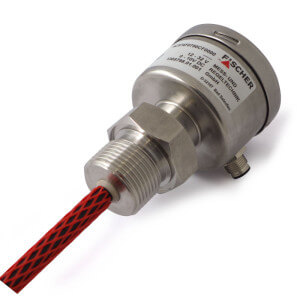

CAPACITIVE LEVEL SENSOR / FOR LIQUIDS / ANALOG / FOR STORAGE TANKS NC57
CONDUCTIVE LEVEL SWITCH / FOR LIQUIDS / MULTI-POINT / THREADED NK06
MAGNETIC FLOAT LEVEL SWITCH / FOR LIQUIDS / STAINLESS STEEL / HORIZONTAL NK10
CONDUCTIVE LEVEL SWITCH / FOR LIQUIDS / MULTI-POINT / THREADED NK21
MAGNETIC FLOAT LEVEL SENSOR / FOR LIQUIDS / STAINLESS STEEL / ANALOG NR56
ELECTRONIC LEVEL SWITCH / FOR LIQUIDS / THREADED NS01

Cap 1 Capture 2

For More details please feel free to contact us or mail us at info@alviautomation.com

Differential Pressure for SIL 1 and SIL 2 applications

Differential Pressure For SIl 1 and SIL 2 applications

Our DE45 Differential pressure switch/transmitter is one of the very popular products. With the growing demand for functional safety in process instrumentation, our DE45 can now offer differential pressure for SIL 1 and SIL 2 applications.

The DE45 is a  multi-functional switching unit with an optional transmitter output. The optional output can be dampened, spread, inverted and transformed via a table function even if not linear! Suitable for measuring overpressure, under pressure and differential pressure in gaseous media, the DE45 can be used for various applications such as

  • Monitoring of roll filters, extraction systems, etc.
  • Draft measurement in chimneys
  • Flow and control pressure measurements
  • Surface coating systems

Apart from this, it can also be used to replace mechanical devices such as liquid column manometers to get a continuous signal.

Featuring robust, resistant to overpressure and maintenance-free design the DE45 is a one of our best-selling product.  With the updated product design, DE45 can now be used for differential pressure for SIL 1 and SIL 2 applications.

For more details, please feel to mail us at info@alviautimation.com

FISCHER – FT61 – Temperature and Humidity Sensor

FISCHER FT61 New long-term stable temperature and humidity sensor with LCD for non-aggressive gaseous media

The digital humidity and temperature device is ideally suited for measuring moisture and temperature of non-aggressive gaseous media. For the monitoring process, the sensor unit can be used separately or integrated in a clean room panel.

The measuring device comprises a display unit and a sensor, which transfers the measured data via I²C bus to the display. Both units can be displayed at the same time or alternatively. The measuring ranges for humidity are between 0…100 % r.F ± 3 % and for temperature between: -40…100°C, ± 0.5°C.

The standard signals 0…10 V, 0… 20 mA und 4…20 mA are available for the analogue outputs.

FT61_Titelbild

Key Features:

  • Capacitive humidity sensor
  • Electronic temperature sensor
  • Long-term stable without calibration
  • High repeatability
  • LC display with colour change of backlighting as clean room signal light user prompt in clear text, in-situ calibration or adjustment, integrated control unit / zeroing and setting without PC
  • Password-protected
  • Industry standard analogue output
  • Rugged and constant sensor type out of VA (stainless steel) material
  • Protection IP65 standard housing.

For details contact us

Digital Differential Pressure Transmitter / Switch with 3½ digit LED display

We are pleased to offer Digital Differential Pressure Transmitter / Switch with 3½ digit LED display and pleased to inform you that all these product support and application support brought to you by ALVI Technologies – Sydney, Australia and ALVI Automation  Jaipur – India.

  • Display and switching device for measurement of differential pressures with mainly neutral liquid and gaseous media.
    Areas of Application:
  •  Filling level measuring technology for technical gases
    Design and Mode of Operation.
  • For monitoring the status of cryogenic gases like Helium, Nitrogen, Oxygen, FISCHER Differential Pressure Transmitter finds wide application
  • Do you have gas mixing system why not use FISCHER DE58 for monitoring the mixing ratios
  • Yet another application of FISCHER DE58 Differential Pressure Transmitter for Marine Gas, Oil Bulk Carriers
  • FISCHER DB58 also used widely in welding, LASER cutting, Metal Fabrication, Gas Blanketing, Cutting and purging machines and applications

Main Features
• Robust and resistant to overpressure
• Maintenance-free through wear-free inductive pickup
• Switchable pressure units
• Optional signal output with possibility of charac-teristic curve spread and reversal with any off-set
• Characteristic curve implementation via table with max. 30 measuring points
• Complete adjustment of all parameters and measuring point protocol possible through op-tional PC adaptor EU03
Typical applications
• Filling level monitoring of tank containers for liquefied technical gases (N2, O2, Ar and CO2).
• Filling level monitoring of mini tank systems.

Design and Mode of Operation

Continue reading “Digital Differential Pressure Transmitter / Switch with 3½ digit LED display”

Nuclear KTA Approved Diaphragm Pressure Gauge MA15

ALVI – India in association with ALVI- Australia and Fischer Germany takes pride to offer Pressure measurement under severe conditions Corrosion-resistant materials for aggressive media and aggressive environment in India.

Key Features :

Corrosion-resistant
High overpressure protection
Suitable for open-air installation
Connection flanges conforming to
standards are available for viscous
media or media containing solids.

Measurement ranges:
0 … 25 mbar, 0 … 25 bar
Measurement accuracy:
±1.6 % resp. ±2.5 %
Adm. media temperature: +100°C
Display accuracy: Class 1.6 / class 2.5
for devices with PTFE-protective film
Overpressure protection:
5-fold, max. 40 bar
Measurement display:
Bayonet ring casing Ø 100 or 160 mm
Safety casing Ø 100 or 160 mm

For More Details Please Contact us on : info@alviautomation.com

Fischer Germany Nuclear Standard KTA Approved Absolute Pressure Gauge DA55

ALVI – India in association with AVI – Australia takes pride to offer Absolute manometer for aggressive and non aggressive gaseous and
liquid media – with Nuclear Safety and standard commissions KTA Approved.

Additional equipment on request:
Liquid filling
Contact devices
Execution for oxygen applications
Measurement ranges:
0 … 25 mbar abs, 0 … 6 bar abs
Measurement accuracy:
±1.6 % resp. ±2.5 %
Adm. media temperature:
–10°C … +80°C
Housing:
NG100 or NG160 of 1.4404
Media-contacting parts:
of 1.4404 or Hastelloy C 276

For More details Please contact us: info@alviautomation.com



Differential Pressure Switch for Water Chiller Plant & Industries

The differential pressure switch type DS34 is
suitable for all non aggressive gases and fluids, as they are: service water, heating water, neutral gas, oil, oily water…!
Applications can be named in:
• filtration systems
• process technique
• machine building
Function
The differential pressure switch is build
around a rugged, reliable membrane sensing
system.
It is suitable to detect vacuum, over pressure
and differential pressure.
In every application the switch is working on
the same principle. The pressure or differential
pressure to be measured generates a force
on the membrane. This force moves the
membrane in one direction against the
measuring range spring. A plunger fitted to
the membrane operates a microswitch when
attempting the adjusted switch point.
The switch point is adjusted by means of an
indicating dial.
Technical Data DS34
Pressure range 0 – 0,6 bis 0 – 6 bar
Max. operating pressure 16 bar (overpressure and vacuum proof up to 16 bar)
Max. environmental temperature -10…70°C
Max. medium temperature + 80°C
Pressure chamber Grivory
Membrane Stainless steel ANSI 301
Pressure connections Thread G1/8 female; other see ordering code
Mounting Mounting base upon request
Electrical connection pre-wired cable 3×0,5mm²
Switch point 10-100% of range, continously adjustable
Switch point accuracy 3% FS
Contact Micro switch, hysteresis 5% FS
Max. load of micro switch
Umax 250 V AC 30 V DC
Imax 3 A 0,4 A
Pmax 250 VA 10 W
Protection class IP65

Fischer Pressure Transmitter ME05 For Nuclear Power Plant

ALVI Automation in association with ALVI Australia takes pride to  Offer Fischer Products for Pressure measurement of liquids and gases up to 250 bar For a Nuclear Power Plant.
Material TYPE:
Highly corrosion-resistant materials Wear-resistant meter movement Also for aggressive media

Measurement ranges:
0 … 1 bar to 0 … 250 bar Measurement accuracy: ≤ 0.75 %Operating temperature:–10°C … +70°C Technology: Analogue Electrical connection type:4-wire, galvanically isolated Output signal: 0/4 … 20mA Characteristic curve: Linear, increasing or decreasing (switchable)

Fischer DP Gauge for Process, Chemical Application – DA03

Gas Alarm India offer Fischer Germany differential pressure gauge DA03. DA03 is a versatile differential pressure gauge which can be configured with various optional features, such as:

  • Adjustable limit contacts: delayed action or magnet actuated type
  • Proximity type (NAMUR) non-contact limit detector
  • Pointer position transducer, with electrical signal output

Applications:

  • Chemical, pharmaceutical industries
  • Process industries
  • Marine and off-shore
  • heavy industries
  • power plants, hydro plants
  • petrochemical, oil & gas
  • refrigeration, building
  • fertilizer, transportation

Features:

  • Corrosion resistant
  • Rugged, wear resistant mechanism
  • Unaffected by fouling
  • Easily cleaned pressure chamber
  • Measuring ranges: 0-40 mbar to 0-25 bar
  • Nominal pressure rating: 40 bar or 100 bar (max. static pressure)
  • Accuracy: ± 1.6% of span
  • Max. differential overpressure:Safe up to max. static pressure; pressure differential in either direction
  • Indicator:Circular dial type, 100 mm or 160 mm diameter
  • Operating temperature: Ambient: -20°C to +80°C, Media: +100°C, maximum
  • Temperature coefficient: Approx. 0.3% / 10°C
  • Zero adjustment: Screw through hole on top of dial housing. ±25% FS.
  • Protection class: IP 54, per DIN EN 60529
  • Pressure chambers: Smooth internal surfaces without recesses; flush sensing diaphragms; easy to clean
  • Pressure connections: DIN EN 61518 connecting flanges with 2x G½ (F) threaded sockets. Various bite type ferrule connectors (see Ordering Code)
  • Purge ports: 2x G 1/8 (F) threaded sockets, in flanged pressure chamber casing; screw plugs fitted

Type “R”:

  • Pressure chamber (wetted part): Stainless steel 1.4404 (AISI 316L)
  • Diaphragm (wetted part): dP ≤ 400 mbar: stainless steel 1.4571
  • dP ≥ 0.6 bar: DURATHERM® (stainless steel)

Type “H”:

  • Pressure chamber (wetted part): Hastelloy® C4
  • Diaphragm (wetted part): dP ≤ 2.5 bar: Hastelloy® C 276
  • dP ≥ 4 bar: Standard diaphragm with separating foil made from Hastelloy® C 276
  • NB: Models with separating foil not useable for vacuum application.
  • Intermediate plate: Aluminium alloy (AlMgSiPb); hard coated
  • Dial mechanism, gauge housing: Stainless steel 1.4301
  • Dial window: Laminated safety glass
  • Dial scale and pointer: Aluminium
  • O-ring gasket: Viton® (FKM, fluorocarbon elastomer)

Electrical accessories: Limit signalling contacts: delayed action / magnet actuated switch type / non-contact proximity type limit detector. Pointer rotation transducer: capacitance type, with output signal proportional to the pointer position (uses deeper gauge housing: see Dimensions). For details of electrical accessories, see Data Sheet KE. Liquid filling For operating conditions involving vibration, pressure fluctuations, and/or moisture condensation inside, the gauge can be supplied with glycerine filling. Reference pointer Adjustable pointer for visual marking of limit / reference value. Peak registering pointer Separate pointer without spring, friction holding: dragged by the measuring pointer as the measured value increases. Stays put when the measuring pointer recedes, thereby registering peak value. Manual re-setting. Options (on special order) Special materials: PTFE coated or Hastelloy-C diaphragm and pressure chamber casing.

MEASUREMENT TECHNOLOGY FOR NUCLEAR TECHNICAL APPLICATIONS

In the course of the cooperative partnership with German plant manufacturers and operators FISCHER Mess- und Regeltechnik
GmbH has developed special measuring converters complying with the high and sensitive requirements in this area. Monitoring
filter functions, flow rates and filling levels is paramount. Moreover, measuring devices for non-safety-relevant applications are available.

FISCHER Mess- und Regeltechnik GmbH is certified as a supplier for nuclear technical power plants according to KTA (Nuclear Safety Standards Commission) rules and standards 1401 in Germany. For safety-critical applications in the field of annular spaces FISCHER Messund Regeltechnik GmbH provides measuring
converters without microprocessor technology.



Continue reading “MEASUREMENT TECHNOLOGY FOR NUCLEAR TECHNICAL APPLICATIONS”

Differential pressure gauge for Gaseous and Liquid media : DA30

Gas Alarm – India  offer Fischer Germany Differential pressure gauge DA30. DA30 measures and indicates pressure and differential pressure. It is suitable to work with gaseous and liquid media not affecting the materials used. Electrical and electronic accessory components (KE) enable limiting of signal and transmitting of measurement.

Principles of Operation: The DA30 is based on a rugged and uncomplicated diaphragm movement, suitable for pressure and differential pressure measurements.

Fields of Application:

  • Water treatment
  • Level measurement
  • Filter technics
  • Flow measurement

Features:

  • Measuring system in rugged design
  • Overpressure proof up to nominal pressure
  • Slow-action and magnetic snap-action contacts
  • Inductive contacts (NAMUR)
  • Azimuth transmitter

Continue reading “Differential pressure gauge for Gaseous and Liquid media : DA30”

Digital differential pressure transmitter with 4-digit colour change LCD – DE39

ALVI – India in association with ALVI – Australia takes pride to offer Display and switching device for Differential pressure of gaseous and fluid media.
Typical applications
• Differential pressure measurements in heavily soiled media
• Filter monitoring
• simple pump control systems
• Pump, compressor monitoring
Design and mode of operation
The device is based on an electronic evaluation circuit that analyses the measuring signals P+ and P- of two integrated ceramic pressure transmitters. The signals are digitalised and sent to the analysis unit for further processing. Both signals can be shown separately.
The main feature is the calculation of the differential pressure. The analysis allows two independent switch points to be set and makes two programmable output signals available. The first output signal (channel 1) is proportional to the differential pres-sure and can be influenced by means of rooting or a table. The second output signal (channel 2) is proportional to the pressure and can be assigned optionally to the signal P+ or P-.
The nominal pressures of the integrated sensors and the differential pressure measuring range are set permanently ex-works and stated on the  type plate.

Continue reading “Digital differential pressure transmitter with 4-digit colour change LCD – DE39”

Liquid Level Detection – Well Probe.

ALVI India in association with ALVI Australia takes pride to offer Fischer – NB10 Well probe for liquid level detection.

Application

Measuring probes for hydrostatic measurement of fluid fill-levels. Some examples of typical applications are water or fluid fill-level measurements in
• Wells
• Drill holes
• Wastewater systems and
• Containers
Most Important Features
• High measuring accuracy
• Low hystersis
• Corrosion-resistant materials
• Integrated measurement converter
• Measured values stable over time

Design and Principle of Operation
This measuring probe is designed around a highly sensitive pressure sensor with a silicon membrane-measuring element.
A DMS resistance bridge is attached to the rear of this membrane using a thin-film method. The well probe is equipped with an indirect hydraulic pressure sensor in order to guarantee the system-inherent dead space latitude. The pressure sensor is isolated by an elastic membrane from the medium to be measured. The volume between the membrane and the pressure sensor is filled completely with a transfer fluid. When pressure is applied this silicon membrane deforms in the elastic region, altering the resistance of the resistance bridge in a response linear to the measuring pressure. These changes in resistance are converted by electronics built into the device into standardized electrical signals.

Electrical Connection
State connecting cable (length) in order text
Operating Voltage
24 V DC
Installation Instructions
The connecting cable can be used up to a depth of 100 m without requiring pull relief.
Smallest cable bend radius: 120 mm; Accessory: Cable holder Model: MZ81

Continue reading “Liquid Level Detection – Well Probe.”

Capacitive Level Sensor for Conductive Liquids

Product Description

Fischer – NC57 Capacitive Level Sensor

Fischer NC57 Capacitive level sensor for conductive liquids (water, acid etc). Custom made for lengths starting at 400mm (40cm) all the way upto 2000mm (200cm) with various analogue outputs. The EU04 infra-red remote (sold separately) is required for commissioning and setting the min & max levels. The NC57 is ideally suited only for metal tanks, however can be used on non-metal tanks by adding an extra “earth rod”

For more details please contact us on: info@alviautomation.com.

For  Technical datasheet click here: Datasheet

Vacuum Pressure Gauge/Switch

ALVI AUTOMATION (INDIA) PVT LTD a div of ALVI TECHNOLOGIES PTY LTD also trading as Gas Alarm Systems is honor to present FICHER Vacuum Pressure Gauge/Switch

Over pressure and vacuum proof contact pressure gauge for control and supervising purposes in vacuum processes.

Application Field :

  • Winning of drinking water, water economy.
  • Process Technology
  • Terotechnology
  • Pneumatic transporter

Fischer 1

Fischer 2

For more information click  here
