CO2 infrared sensor for dispensing and refrigeration systems

We are pleased to offer CO2 Sensor Transmitter for Refrigeration Systems in India.

Exchangeable sensor including digital value processing, temperature compensation and self control for the continuous monitoring of the ambient air to detect CO2.
The sensor cartridge SC2 includes a CO2 sensor element with infrared sensor and an amplifier as well as a μController for measured values processing. The IR measuring principle with integrated temperature compensation ensures highest accuracy, selectivity and reliability despite the long calibration interval. In the μController, all the data and measured values of the sensor element are stored fail-safe and transmitted digitally via the local bus to the sensor board SB2 or MSB2. The calibration management is also integrated in the μController of the sensor cartridge.
Calibration is done either by simply replacing the sensor cartridge or by using the comfortable, integrated calibration routine directly at the system.
APPLICATION
The PolyGard®2 Sensor Cartridge is used for the detection of CO2 leakages in dispensing and refrigeration systems.
FEATURES

•  Digital measurement value processing incl. temperature compensation.
• Internal functional control with integrated Hardware Watchdog
• Data / measured values in μC Sensor Cartridge, therefore simple exchange of SC uncalibrated <> calibrated
• High accuracy, selectivity and reliability
• Low zero point drift
• Sensor with long life expectancy > 15 years
• Software according to SIL2 compliant development process

Continue reading “CO2 infrared sensor for dispensing and refrigeration systems”

Monitoring Gas Concentrations in Laboratories

Our Door Entry Module DEM-06 is specially designed for monitoring gas concentrations in laboratories or any such closed rooms.

Several experiments are conducted in a university, research or medical laboratories. Depending upon the applications there are many different gases that are used in various laboratories and hence they are equipped with gas storage cylinders and pipelines. These gases are often toxic, flammable or combustible and any leak from a gas cylinder or a pipeline can cause potential fatal incident. Any gas leak could be a potential threat to the safety of personnel working within the laboratory.

Our door entry module DEM-06 in combination with our DGC-06 makes your laboratory a safe place to work within. The module DEM-06 controls the access to closed laboratories, ensuring the safety of the employee working in the laboratory.

The DEM-06 can monitor the alarm situations of the DGC-06 systems via the RS-485 bus. Up to 128 relay information bits can be used via the field bus to control alarm displays and warning outputs. Configuration can be done via the password protected keypad to get level and project independent structure without specific programming knowledge.DEM-06 offers simple and fast commissioning due to pre-configuration with standard parameters.

Please e-mail us for any closed room gas monitoring applications.

Hydrogen Gas Detectors (German Quality)

Hydrogen sensor transmitter for online, continuous LEL or flammability detection in battery rooms, UPS rooms, cracking plants, hydrogenation plants, hydrogen gas bank etc. The detector is explosion proof ATEX, IECEX certified with SIL 2 safety level and suitable for installation in  Indoor, Outdoor and hazardous area Zone 1 and Zone 2.

It is available with LCD Display, onboard relay contacts, flashing alarm LEDs, auto diagnostic watch dog, non-intrusive calibration, with industry standard linear analog output.

online, continuous monitoring of hydrogen LEL or flammability level, wall or duct mount, with/without display & relays, ATEX, IECEX certified with safety integrity level SIL 2, Indoor, Outdoor and explosion proof for Zone 1, 2

Model: MA, MC2, SC2 and PX2 Series



Hydrogen gas detector series is highly robust, industrial grade,non-flameproof, flameproof, or explosion proof gas detector for hydrogen LEL or flammability monitoring. It is used for online, continuous monitoring of hydrogen flammable concentration in %LEL  terms in ambient air or in duct or pipeline. It is ATEX EEx’d’ certified with SIL 2 safety integrity level for hazardous area installation Zone 1 and 2.

The sensor transmitter offers linear, proportional analog output in industry standard current signals, over measuring range of 0 ~ 100 % LEL (lower explosive limit). The detector works on highly sensitive catalytic bead based pellistor sensor cell, with low response time. It has unique feature of auto diagnostic watch dog with zero point tracking feature.

Due to its 12-bit microprocessor based control unit, it offer high accuracy over long term. The detector is also equipped with sintered filter with flashback arrestor for enhanced safety.

It also offers optional features like inbuilt LCD display, flashing alarm LEDs, onboard potential free relay contacts (24VDC @ 1 A), RS485 serial interface with Modbus RTU communication.

Key Features:

• Catalytic bead based Pellistor sensor cell with low flash energy
• 12-bit microprocessor control unit
• Non-intrusive one man calibration via hall effect switches
• ATEX certified explosion proof / flameproof, suitable for Zone 1, 2 gas explosion installation
• Linear, proportional analog industry standard current output
• Continuous system self-diagnosis with watch dog
• Flashback arrestor with sintered filter
• Auto Zero point tracking to zero point compensation
• SIL 2 TUV certified,IECEX, SIL 2
• RS485 serial interface with Modbus RTU communication (optional)
• 1 or 3 relay output module (optional)
• System and alarm LED indicators (optional)
• Modbus RTU communication over RS485 serial interface

Technical Specifications:

• Measuring Parameters: hydrogen gas flammability or leakage
• Sensor Technology: Catalytic bead based pellistor sensor cell
• Measuring range: 0 ~ 100 % LEL
• Response time (t90): < 10 sec
• Control unit: 12 bit microprocessor based
• Warm up time: < 5 mins
• Auto zero point tracking for drift compensation
• Power supply: 24 VDC
• Ingress protection: IP44, IP 54, IP 65, IP 66
• Enclosure: Stainless steel (for sensor cell), Cast Aluminium (for transmitter), polycarbonate material
• Output: linear, proportional 4-20mA or 2-10Vdc
• Mounting: wall, duct, pipeline
• Safety integrity level: SIL 2
• Optional: LCD Display, alarm LEDs, potential free relay contacts
• Hazardous area: Zone 1, 2

Application:

• Oil & Gas, Petrochemical, refinery
• Battery rooms, UPS facility
• Mobile switching center (MSC) of cellular / telecom site
• Cracking plants
• Hydrogenation plants
• Chemicals
• Cold stores
• Pharmaceuticals, medicinal formulation

For more details please feel free to contact us

LPG Leakage Detection

GasAlarm India pleased to offer LPG sensor transmitter / Leakage detector/ Analyser in association with ALVI Technologies- Australia &  MSR Germany with following features:

• Measuring range: 0-100% LEL (lower explosive limit), 0-100% Vol (analysis)
• Technology: Pellistor / catalytic bead (flammability monitoring), Infra-red
• Output: 4-20mA, 0-10V, RS485 modbus, Lon, BacNET
• Enclosure: IP44, IP54, IP65
• Certificate: UL 61010, UL 2075, ATEX EExd, ATEX EExn, CE
• Mounting: wall mountable, duct mountable
• Installation area: safe area, hazardous area, explosion-proof

Application areas: Kitchen , gas bank, bottling plant, booster station, gas

store, pharmaceutical, cylinder store, gems processing, heat processing, furnace, engine room, testing rooms, automobile, defence, warship, annealing plant, chemical plants, oil & gas, fire safety, domestic gas pipeline, kitchen, refinery, food processing, cement, bearing, machine industry, swimming pool, combustion area, bakery, commercial, hotels, mines, confined space, gasifier, stockyard, oil wells, biogas plant, landfill, boiler plant, thermal power plants etc.

Continue reading “LPG Leakage Detection”

LPG Detector – Liquified Petroleum Gas Leak Detection Systems

GasAlarm India pleased to offer LPG sensor transmitter / detector/ analyser in association with ALVI Technologies- Australia &  MSR Germany with following features:

• Measuring range: 0-100% LEL (lower explosive limit), 0-100% Vol (analysis)
• Technology: Pellistor / catalytic bead (flammability monitoring), Infra-red
• Output: 4-20mA, 0-10V, RS485 modbus, Lon, BacNET
• Enclosure: IP44, IP54, IP65
• Certificate: UL 61010, UL 2075, ATEX EExd, ATEX EExn, CE
• Mounting: wall mountable, duct mountable
• Installation area: safe area, hazardous area, explosion-proof

Application areas: Kitchen , gas bank, bottling plant, booster station, gas store, pharmaceutical, cylinder store, gems processing, heat processing, furnace, engine room, testing rooms, automobile, defence, warship, annealing plant, chemical plants, oil & gas, fire safety, domestic gas pipeline, kitchen, refinery, food processing, cement, bearing, machine industry, swimming pool, combustion area, bakery, commercial, hotels, mines, confined space, gasifier, stockyard, oil wells, biogas plant, landfill, boiler plant, thermal power plants etc
Features:

• reverse polarity protected
• poisoning protected
• low flashing temperature for longer sensor
• modular architecture
• manual calibration
• expected life: 3 years-15 years
• low response time
•  Conformity to
  o EN 50271
  o EN 61010-1
  o ANSI/UL 61010 1
  o CAN/CSA-C22.2 No. 61010-1

Gas type available: combustible gas detector, confined space gas detector, gas detection system, gas detectors, gas analyzers, exhaust gas analysers, biogas analyzers, stack gas analyser, catalytic gas sensor, combustible gas sensor, gas sensors, hydrogen gas sensor, methane detector, LPG bottling plants, LPG burners, LPG cylinder plant, LPG fuel tank, lpg gas leakage sensor, gas train, lpg gas tanker, lpg station, lpg vaporizer, natural gas alarm, natural gas plants, combustion analyzer, biogas generation plant, biogas generator, biogas power generation plant, biomass gasifier, propane vaporizers.



Carbon Monoxide Sensor/Detector and Transmitter For Ventilation Control

Make :- MSR Germany

Area Of Application:-

MSR Germany Carbon Monoxide (CO) Detectors and Transmitters save energy costs by controlling ventilation equipment (Fan) in areas where high concentrations of CO may present serious health problems.  Various building and occupancy codes require that ventilation fans run 100% of the time in enclosed areas, such as parking garages, unless a CO monitoring system is installed in that particular areas .

The MSR Germany Carbon Monoxide Detector/Transmitter has an excellent sensing unit (Electrochemical – Gel Type Sensor Cell ).  As carbon monoxide levels increase, contacts are provided to actuate ventilation equipment (Fan) and an audible internal alarm will activate if CO levels continue to rise.  Since ventilation equipment is only required when CO levels are elevated, energy costs for HVAC operation are significantly reduced.

 Carbon Monoxide Transmitter is used to provide a proportional analog signal to the Multi-Input Control Panel or a Building Management System (BMS).

Ideal for :
Parking area, garages, chiller rooms and heating, as well as dusty & humid area like pharmaceuticals, coal mine, conveyor belt, cement plant, thermal power plants, flour mills,
powder industries.

Key Points :-

• Carbon Monoxide with enhanced CO radical detection capability
• Very early smouldering fire and smoke detection.
• VESFA system (very early smoke and fire alarm)

SPECIFICATIONS:-

Continue reading “Carbon Monoxide Sensor/Detector and Transmitter For Ventilation Control”

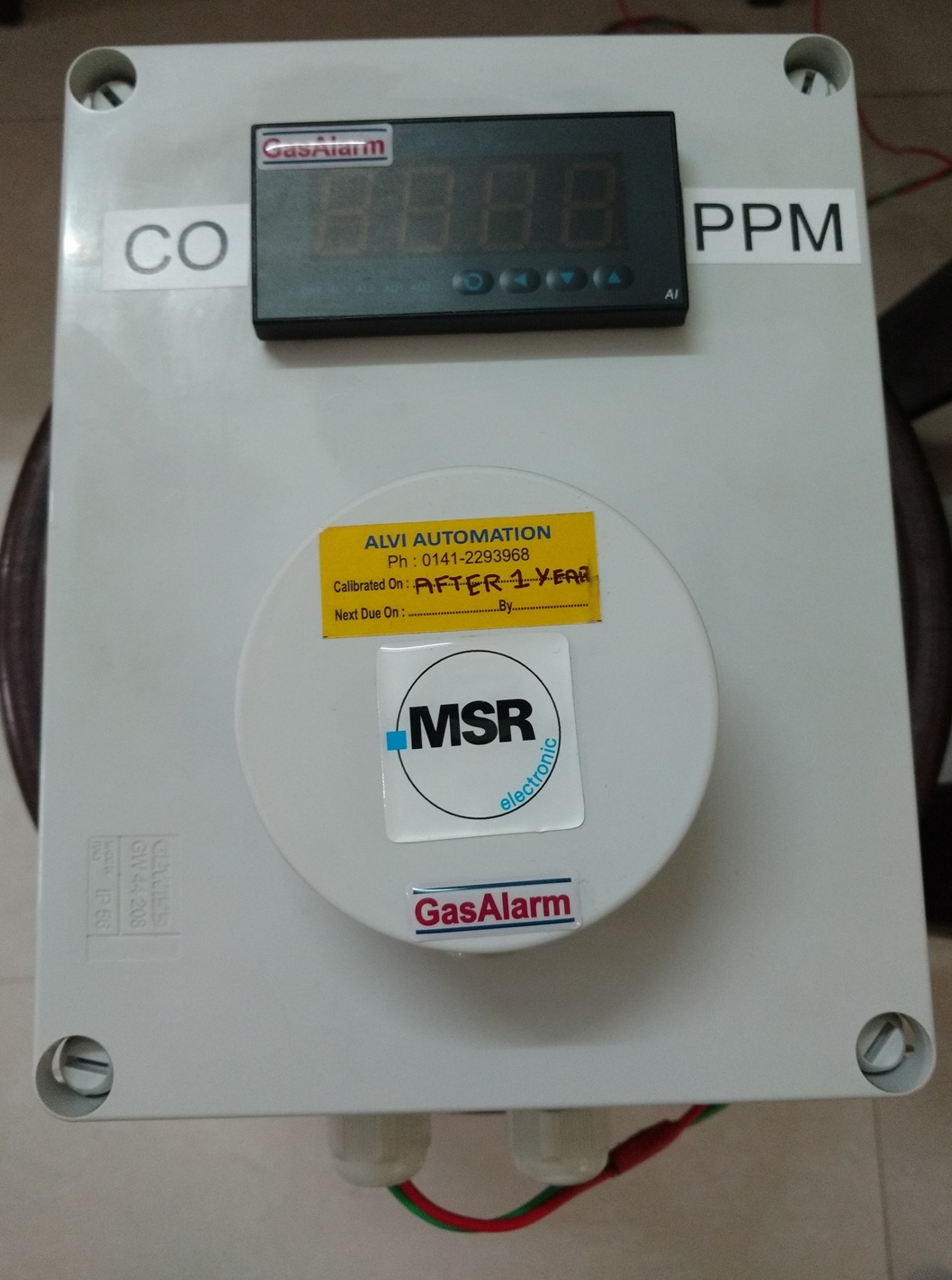

CO Sensor Transmitter

Carbon Monoxide Sensor Transmitter with enhanced CO Gas radicals detection capability

Make :- MSR Germany

Area Of Application:-

Ideal for :
Parking area, garages, chiller rooms and heating, as well as dusty & humid area like pharmaceuticals, coal mine, conveyor belt, cement plant, thermal power plants, flour mills,
powder industries.

Key Points :-

• Carbon Monoxide with enhanced CO radical detection capability
• Very early smouldering fire and smoke detection.
• VESFA system (very early smoke and fire alarm)

SPECIFICATIONS:-

• Sensor Model Available in : – MA, MC2, SC2, PX2 Series.
• Measuring Gas: Carbon Monoxide, Enhanced CO + radicals Detection.
•  Sensor element (cell):- Electrochemical Diffusion, Electrolyte type Gel based (no leak, no membrane rapture, no orientation problem & no false alarm)
•  Measuring Range: – 0-300 ppm (Standard)
• Connection: – Two and Three wire sensor
• Response time T90:-  ≤ 50 Sec
• Warm-up time (First Time):- ≤ 3 Min.
• Protection Class Available in : IP44/54/65/66 (Flameproof and weatherproof )
• Stability & resolution: – ± 3 ppm
• Sensor life expectancy:- ≥ 5 years (Site Feedback ≥ 10 Years  )
• Calibration Interval: 1 Year.
• Sensor Coverage Area: – 700 m² to 750m², ideal condition.
• Humidity non-condensing : 15-90% RH
• Working temperature :–10°C to 50°C
• Power supply:-  18 – 28 VDC ( Overload protected)
• Analog output signal :- Standard: 4-20 mA Linear Output, also availabel in 2-10VDC
• Flammability: – UL 94: V2
• Warranty: 12 Month only on manufacturing defects
• Guidelines Approval : EMC Directives 2004/108/EC, EN 61010-1:2010, ANSI/UL 61010-1, CAN/CSA-C22.2 No. 61010-1, ATEX , SIL2, CE, UL , IECEX.

For Technical Datasheet please click here

Flame Detector : With Analog Output

Gas Alarm India in association with  Gas Alarm – Australia takes pride to introduce flame detector in India.

Detector / transmitters / ANALYZER / MONITORING for explosion proof hazardous area (zone 1, 2)

Detector or sensor transmitter for online, continuous monitoring of all type of flame/fire. These transmitters offer German industry standard analog output in current or voltage form, or digital signals like Modbus RTU with RS485 serial interface. Optionally, these are also equipped with potential free relays.

These can be mounted on wall, ceiling, columns, ducts or pipelines. These can be single gas or multi-gas detection transmitters.

The sensor instruments are SIL 2 certified to offer best safety.

For More Details : Please click here

Gas Detector Cartridge For Combustible/Flammable Gases Along With RS 485 Interface Sensor Board

ALVI Automation also trading as GasAlarm brings to you a revolutionary product in the field of Flammable/Combustible Gas Detectors.

Sensor Cartridge SC2 for combustible gases

Exchangeable sensor including digital value processing, temperature compensation and self-control for the continuous monitoring of the ambient air.

APPLICATION:

The PolyGard®2 Sensor Cartridge is used for the detection of combustible gases in non-Ex zones.

FEATURES:

• Digital measurement value processing incl. temperature compensation
• Internal functional control with integrated Hardware Watchdog
•  Data / measured values in μC Sensor Cartridge, therefore simple exchange of SC uncalibrated <> calibrated
•  High accuracy, selectivity and reliability
•  Low zero point drift
•  Sensor with long life expectancy
•  Hardware & software according to SIL2 compliant development process
•  Modular technology (plug-in and replaceable)
•  Easy maintenance and calibration by exchange of the sensor cartridge or by comfortable on-site calibration
•  Reverse polarity protected, overload and short-circuit proof
•  IP 65 version
•  Conformity to
  o EN 50271
  o EN 61010-1
  o ANSI/UL 61010 1
  o CAN/CSA-C22.2 Nr. 61010-1



Sensor Board SB2

Sensor board with RS 485 interface for integration of the Sensor Cartridges SC2.

 For More Details please feel free to contact us

MSR Electronic GmbH

MSR-Electronic offers stationary gas warning systems for reliable monitoring, leakage detection and analysis: sensors, controllers and warning devices.

Whether for compliance with the MAK values or for leakage monitoring, the MSR-Electronic gas warning systems detect continuously and reliably harmful gases. The products and solutions are found in many applications such as parking garages, refrigeration, biogas plants or shipping.

When you choose MSR-Electronic’s secure solutions and innovative products, you benefit from many advantages, such as quality and availability, competitiveness, and openness to meet your individual requirements.

For more details contact us





Portable Gas Measuring Device incl. Datalogger Series ADL-X1-11XX for Toxic Gases.

ALVI – India in association with ALVI – Australia we are pleased to offer you portable Gas measuring Device including Datalogger for Toxic and combustible Gases .

Portable gas measuring device with integrated datalogger for the continuous monitoring of the ambient air to detect the presence of toxic gases and vapours, as well as of oxygen. Up to 16,000 measuring values are recorded in the datalogger.
APPLICATION
For the detection and recording of toxic gases and vapours, as well as of oxygen in a wide range of commercial applications.
FEATURES
 Suitable for toxic gases and vapours, as well as for oxygen
 Measuring cycle adjustable from 2 sec. to 5 hours
 Datalogger for 16.000 measuring values
 Data readout via the USB port
 Data output in Excel standard format
 Internal rechargeable battery: Lifetime depending on sensor type
 Certified calibration

For more details please contact us on : info@alviautomation.com

Flammable / Combustible Gases sensor – online transmitter / Detector / Analyzer / Monitoring , Non Ex-proof area

Combustible gases (flammable ) detectors / Sensor Transmitters by world-class German technology

Gas detector or sensor transmitter for online, continuous monitoring of all combustible or flammable gases as below. These transmitters offer industry standard analog output in current or voltage form, or digital signals like Modbus RTU with RS485 serial interface.

Optionally, these are also equipped with potential free relays.

These can be mounted on wall, ceiling, columns, ducts or pipelines. These can be a single gas or multi-gas detection transmitters.

Nonexplosion proof sensor or detectors can be installed at non-hazardous area classified areas like kitchen, canteen, building, store rooms, warehouse, cold stores, offices, theatre, mall etc.

Name of combustible gases:

• Hydrogen
• LPG
• Methane
• Acetic acid
• Acetylene
• Acetone
• Ammonia
• Benzene
• Butyl acetate
• Cyclohexane
• Cyclopentane
• Ethane
• Ethyl acetate
• Ethyl Alcohol
• Ethylene
• Ethylene oxide
• Ethyl Ether
• Iso- butane
• Iso butyl alcohol
• Isopentane
• Iso propanol alcohol
• Iso propyl Alcohol
• Methanol
• Methyl ethyl ketone (MEK)
• n-butane
• n-pentane
• n-heptane
• n-octane
• nitrogen trifluoride
• Noname
• Petrol Vapour
• Hydrocarbons
• Solvent Vapour
• Propane
• Propane
• Propyl Alcohol
• Styrene
• Toluene
• Trimethylbenzene
• Vinyl Acetate
• Xylene

For more details click here

Toxic Gases – Sensor Transmitter / Detectors / Analyzer / Monitroing – Non Ex proof

Toxic Gas detectors / Sensor Transmitters By MSR Germany

Gas detector or sensor transmitter for online, continuous monitoring of all toxic gases as below. These transmitters offer industry standard analog output in current or voltage form, or digital signals like Modbus RTU with RS485 serial interface. Optionally, these are also equipped with potential free relays.

These can be mounted on wall, ceiling, columns, ducts or pipelines. These can be single gas or multi-gas detection transmitters, available with or without onboard display.

Name of toxic gases:

• CO / carbon monoxide
• CO2 / carbon dioxide
• H2 / Hydrogen
• C2H2/ Formaldehyde
• C2H4/ Ethylene
• F2 / Flourine
• Cl2 / Chlorine
• NO2 / nitrogen dioxide
• NO / Nitrous oxide
• SO2 / sulphur dioxide
• H2S / Hydrogen sulphide
• CS2 / carbon sulphide
• HCN / hydrogen cyanide
• HCl / hydrogen chloride
• NH3 / ammonia
• Hydrazine
• Phosphine
• Phosgene
• Chlorine dioxide
• Freon
• Ozone
• Oxygen
• Nitrogen
• Argon, Helium
• Silane
• VOCs, volatile organic compound
• Aerosols

For more details click here

Toxic Gas sensor – online Transmitter / Detector / Analyzer / Monitoring – Explosion proof (ATEX, IECEx, SIL2)

Toxic gas sensors / detector / transmitters / aNALYZER / mONITORING for explosion proof hazardous area (zone 1, 2)

Gas detector or sensor transmitter for online, continuous monitoring of all toxic gases as below. These transmitters offer German industry standard analog output in current or voltage form, or digital signals like Modbus RTU with RS485 serial interface. Optionally, these are also equipped with potential free relays.

These can be mounted on wall, ceiling, columns, ducts or pipelines. These can be single gas or multi-gas detection transmitters.

The sensor instruments are SIL 2 certified to offer best safety.

Name of toxic gases:

• CO / carbon monoxide
• CO2 / carbon dioxide
• H2 / Hydrogen
• C2H2/ Formaldehyde
• C2H4/ Ethylene
• F2 / Flourine
• Cl2 / Chlorine
• NO2 / nitrogen dioxide
• NO / Nitrous oxide
• SO2 / sulphur dioxide
• H2S / Hydrogen sulphide
• CS2 / carbon sulphide
• HCN / hydrogen cyanide
• HCl / hydrogen chloride
• NH3 / ammonia
• Hydrazine
• Phosphine
• Phosgene

For more gas list click here

Combustible Gas Sensor Transmitter / Detector / Analyzer / Monitoring – Explosion proof (ATEX, IECEx, SIL2)

Flammable or Combustible Gas Sensors – detectors or transmitter for online, continuous monitoring in hazardous area (zone 1, zone 2)

Gas detector or sensor transmitter for online, continuous monitoring of all toxic gases as below. These transmitters offer industry standard analog output in current or voltage form, or digital signals like Modbus RTU with RS485 serial interface. Optionally, these are also equipped with potential free relays.

These can be mounted on wall, ceiling, columns, ducts or pipelines.

The transmitters are SIL 2 certified instruments, for better safety.

Name of flammable or combustible gases:

Hydrogen	LPG	Methane
Acetic acid	Acetylene	Acetone
Ammonia	Benzene	Butyl acetate
Cyclohexane	Cyclopentane	Ethane
Ethyl acetate	Ethyl Alcohol	Ethylene
Ethylene oxide	Ethyl Ether	Iso- butane
Iso butyl alcohol	Isopentane	Iso propanol alcohol
Iso propyl Alcohol	Methanol	Methyl ethyl ketone (MEK)
n-butane	n-pentane	n-heptane
n-octane	nitrogen trifluoride	Nonane
Petrol Vapour	Hydrocarbons	Solvent Vapour
Propyl Alcohol	Styrene	Toluene
Trimethylbenzene	Vinyl Acetate	Xylene

For more details click here
